Entrance Nespresso Capsule Filling And Sealing Machine

Single Tunnel For Nespresso Capsule Fillng Sealing Machine

Filling Station

There is compressed filling head make top of cup with cleanliness.

Single volumetric unit with a servo motor and also equip an agitator in the hopper to stir coffee on a flow condition.



Tamper and Cleaner

After the filling station, coffee sometimes will remain a little bit on the cup, and ground coffee is in a mess.

So the Tamper works make coffee granule in the capsule nearly equal.

Cleaner suck some dust around the coffee edge.

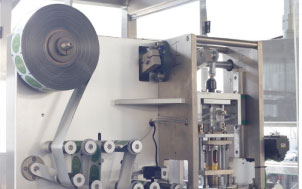

Cutting and First Seal

This station is for cutting an aluminum or laminated lid where it covers the opening of capsule.

The servo motor controls pulling and unwinding two actions of roll reel, meanwhile the unused film is pulled to cut and the used film is collected. The roll film mechanism realizes this complicated process. Lid will land the upper of capsule.

While the heater follows the cutter and fulfill the first seal.



Double Seal

After preliminary seal, there would a second seal to guarantee the closure.



Outfeed

Sucker pass good ones and reject unqualified capsule.

Good ones are placed on a convey belt which between in a weight rank that you set.

Unqualified that less or over the weight you set would drop into a trash can below the machine with the capsule module running.



• Humanized solution

We are alarm system which is a broadcast connect with PLC when fault happen. So operator can be informed.

• Four sets of induction devices

First is on horizontal platform for detecting if cup is running out. (also fit to vertical way).

Second is after cup loading to detect there is something on the running mold.

Third is after cup loading to detect if there is a cup, no cup no filling.

Final one is after a station of lid drop. No lid no sealing.

• Nitrogen Flush

Nitrogen Flush through production, including hopper (container for ground coffee).
