CP4501 K Cup packaging machine makes 3000 cups Per hour.

Linear Production for K Cup/K-shot.

Introduction

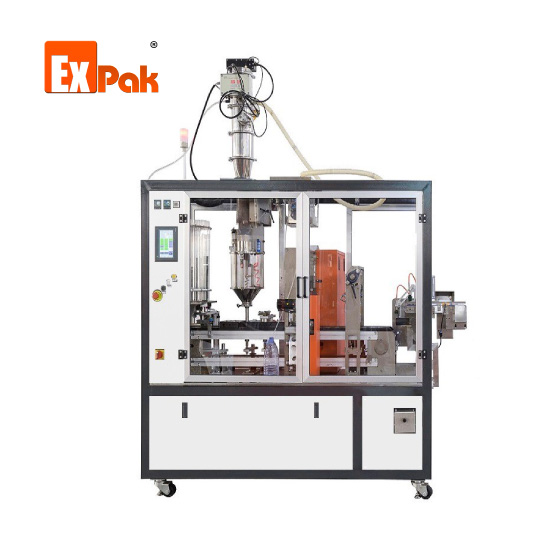

Expak CP4501 single lane.

Suitable for	K CUP , K Short
Speed	Up to 50 cups/min
Filling type	Auger filling
Filling accuracy	±0.15g
Sealing type	Pneumatically driven heat and seal, Omron precise temperature controller
Voltage	220v/380v 50/60hz—3PHASE (by customer)
Dimension	2260mmX950mX2250mm
Weight	750kg
Certification	CE, ISO Compliant

The single lane K Cup Packaging Line is designed for small output for 3000 cups per hour.
As a compacted model save your footprint and save your budget.
Equipped with the Plexiglass Door, Door connects with alarm reminder for the operator.

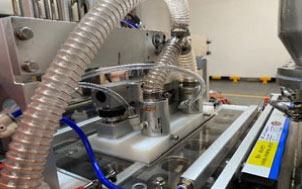

Nitrogen Flush and UV light system make sure freshness.

See the K Cup how to actual make

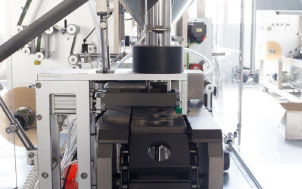

Vertical Cup Dropping System.

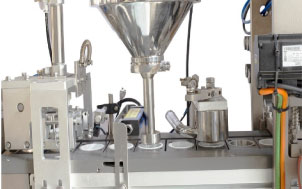

Compressed filling with serve motor driven accurate auger.

*sensor inside can detect amount of coffee.

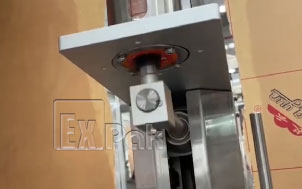

Tamper with a cleaner.

Tamper as a plane and clean the capsule and guarantee better seal.

Place precut lid onto kcup.

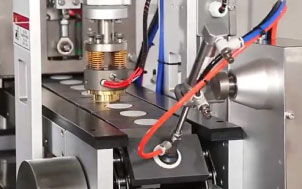

Seal

K Cup Packaging Line

We are alarm system which is a broadcast connect with PLC when fault happen. So operator can be informed.

First is on horizontal platform for detecting if cup is running out. (also fit to vertical way).

Second is after cup loading to detect there is something on the running mold.

Third is after cup loading to detect if there is a cup, no cup no filling.

Final one is after a station of lid drop. No lid no sealing.
