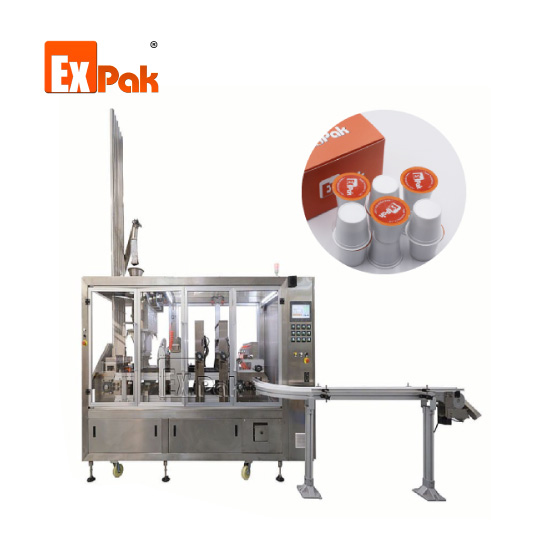

Multi-tunnel K Cup Filling Machine

Large Production make 18000cups Per hour.

2022 Latest Linear Production for K Cup/K-shot.

Introduction

Expak CP5006 six lane running in America Manufacturer.

We represent the Profession.

Suitable for	Keurig K-Cup compatible capsules
Speed	240-300cups/min
Filling type	Servo motor driven auger filler
Filling accuracy	±0.15g
Sealing type	Pneumatically driven heat and seal, Omron precise temperature controller
Voltage	220v 50/60hz—3PHASE (by customer)
Dimension	3500 mmX1050mX2062mm
Weight	1500kg
Certification	CE, ISO Compliant

K Cup Filling Machine

The Six Lane Production are designed for large output for 18000 cups per hour.
This monster, we highly recommend connecting our carton packing machine.
The body is stainless steel SS304 food grade, equipped with the Plexiglass Door, Door connects with safe alarm stop system for the operator.
Nitrogen Flush and UV light system make sure freshness.

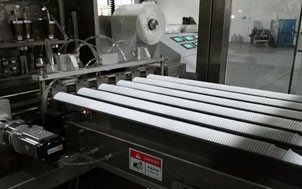

Horizontal tunnel for K Cup and related to loading cup system.

If you don’t like this way or consider your workshop footprint.

Don’t worry, Expak get you an another solution.

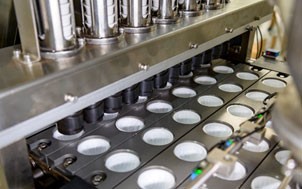

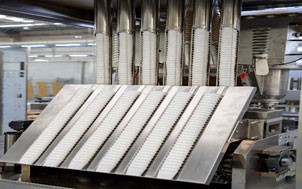

Vertical cup loading system and rotate to drop empty K Cup same as Europe’s.

*Our engineers visit to Europe and improve this station of dropping cup.

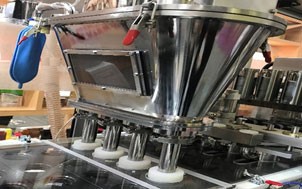

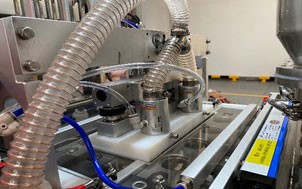

Compressed type filling serve motor driven auger system, operator can check through a watchable window.

*sensor inside can detect amount of coffee.

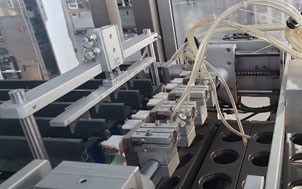

Professional coffee dust cleaning station to clean the capsule and guarantee 100% sealing (Airbest filter).

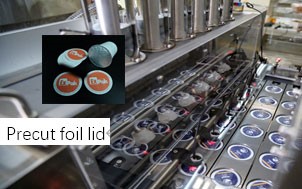

Place precut foil 2.0 lid onto kcup this station total in nitrogen protection chamber.

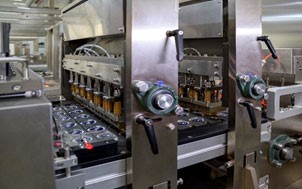

Seal twice to ensure the tightness.

*we are available for line sealing or flat sealing.

Six Lane K Cup Filling Machine

Not enough to impress you?

We are alarm system which is a broadcast connect with PLC when fault happen. So operator can be informed.

First is on horizontal platform for detecting if cup is running out. (also fit to vertical way).

Second is after cup loading to detect there is something on the running mold.

Third is after cup loading to detect if there is a cup, no cup no filling.

Final one is after a station of lid drop. No lid no sealing.

Nitrogen Flush through production, including hopper (container for ground coffee).

We support customized cartoning machine as a secondary packaging.

Want to know more? Contact us!!!
